#18 NEM 362 European Style Coupler – Medium

£4.60

Only 3 left in stock

Description

#18 NEM 362 European Style Coupler – Medium


This industry leading coupler features an NEM 362 European Style Coupler. The #18 Magne-Matic® NEM 362 European Style Coupler that is mounted in the HO-Scale NEM 362 draft gear box pocket.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.

NEM 362 Coupler Instructions

Two pair per package (w/o Draft Gear Boxes)

Package Includes:

  • (2) Pair #18 Couplers (Aassembled) – Medium Underset
  • (2) #622 Knuckle Springs
#18 Coupler Features:
Material  –   Metal Knuckle, Plastic Coupler Swallow-tail Shank

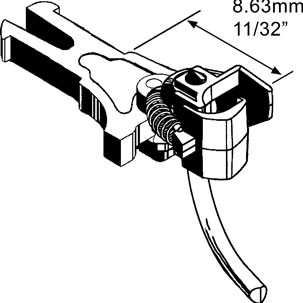

Length  –   Medium (8.63mm , .340 inch , 11/32″) (pulling face to the dovetail sholder)
Coupler Offset  –   Underset
Knuckle Spring  –   #622
Centering System  –   NEM European Style Coupler
Centering Spring  –   #620 Centering Spring European Style Couplers-NEM 362 Style
Head  –   Standard Head

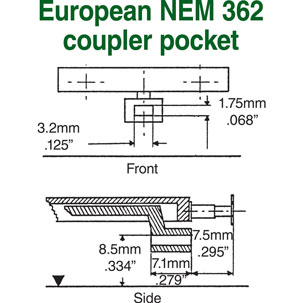

Mounting Specifications:
Mounting Height  –  8.5mm , .334″
Centerline  –   9.9mm , .390″
Trip Pin Height  –  .08mm , .031″

Brand

Kadee

Additional information

Scale

HO Scale
